    4 Fold Zoom Industrial Endoscope

    Ask Lasest Price
    Brand Name : COBE
    Certification : ISO9001
    Price : Negotiable
    Delivery Time : sets1 - 10: 20days sets>10: To be negotiated
    Payment Terms : visa,online bank payment
    Supply Ability : 50 Set/Sets per Month
    • Product Details
    • Company Profile

    4 Fold Zoom Industrial Endoscope

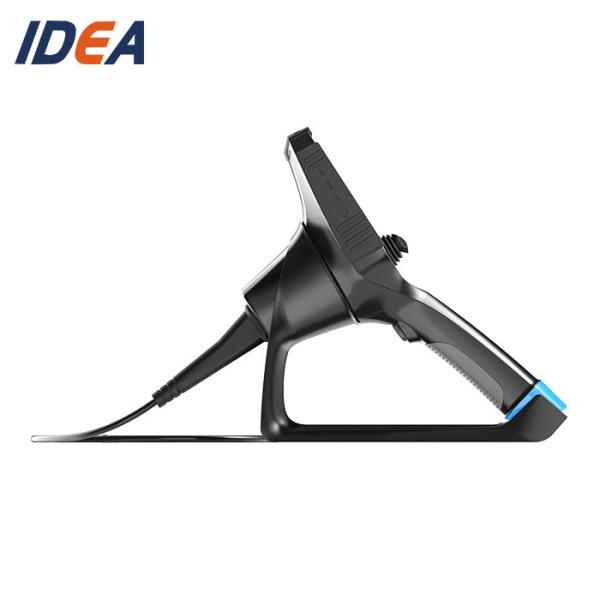

    Portable Industrial Video Endoscope


    Qualification:


    HD-MIEPortable Industrial Video Endoscope

    S

    Y

    S

    T

    E

    M

    product size315*103*173mm
    weight0.6KG
    indicatorBright IPS 3.5 inch LCD
    Display resolution640*480
    Strong light suppressionLevel 2 strong light suppression
    Weak Light CompensationLevel 2 Weak Light Compensation
    Image Mirroring and Flip Section180°Mirror and flip
    Zoom magnification4-fold digital zoom
    Image effectsNormal, negative
    white balanceAutomatic white balance, manual white balance
    Control leverMechanical rocker 360° omnidirectional lens guide
    autolockautolock
    functionPhoto, video, brightness adjustment, menu, picture zoom, frame, picture flip
    audio frequency3.5 mm headset integrated
    internal storage16G
    Data I/O portsSD card interface, headset interface, HDMI interface, charging, Micro USB interface
    cell18650 Battery Section 1(replaceable)
    stand-by time≥4h
    mode of operationHand-held portable
    brightness controlLevel 4 brightness adjustment
    Front-end Video ProbeInsert tube materialTungsten wire wear resistant pipe
    Camera turn360° Mechanical arbitrary direction
    angle of bend≤1m,150±10°;2m≥length>1m,140±10°
    Effective pixels1.6 million(Aseries)4.5million(Bseries)
    depth of field(mm)3~50mm
    angle of view120°
    softwareoperating systemReal-time multitasking operating system
    user interfaceDrop-down Operations Menu
    file managementSupport picture/video playback, deletion, formatting
    vision controlFlip, zoom, frame
    picture formatJPEG/JPG(Date and time of record)
    Video formatAVI(Date and time of record)
    languageChinese, English and other languages
    operational environmentOperating temperature of mainframe systememperature :-10~50°
    Working Temperature of Video Probeemperature :-20~70°
    relative humidityMaximum 90%, no condensation
    waterproofMainframe IP54/ video probe IP67

    functions:


    ☆ The host receives all digital non-destructive video data, complete acquisition and preservation of camera data;

    ☆ The image can be flipped, frozen and magnified four times to facilitate the analysis of small details;

    ☆ 360° Mechanical arbitrary steering,180°bending —— convenient, precise and automatic locking direction;


    introduction


    HD,Portable,Flexible,Diverse——HD-MIE Series,Full upgrade! With the latest digital high-definition image processing technology and 640*480 high-resolution screen to ensure a clearer image, subtle defects can also be seen.At the same time, it has a level 2 strong light suppression, which can ensure a clear field of vision when observing the reflective surface (such as metal surface), and a level 2 weak light compensation function, which can light source and make the observation distance longer and the picture clearer;


    Moreover, this product has lens with diameter 2.2 mm direct vision , 2.8 mm direct vision , 3.9 mm direct vision / purple , 6 mm direct vision / purple / double camera, so that you can choose on demand, one machine and many tubes, and get the best collocation combination at the best price to adapt to a variety of working conditions.


    About Us


    COBE persistent in development of innovative nondestructive testing instruments and applications to make your industrial production and industrial safety can be effectively controlled and achieve greater production efficiency and reduce testing costs.COBE's mission is through the provision of reliable non-destructive testing products and services to bring these innovative technologies into productive forces.


    COBE and the well-known institutions, research institutes formed a collaborative network of community-based research, with a strong R & D capability. Guaranteed COBE company the NDT technical standards to be at the domestic leading position in China and international first-class status.
